Alpha Outdoor Blind Motors
Alpha's outdoor blind motors are the heart of every motorised Alpha installation. Both the mains powered WSERD50-T and the rechargeable battery WSERD50-B are designed for external zip and straight drop systems, with obstacle detection, fabric tensioning, three selectable speeds and a long thermal overload cut-out time.
WSERD50-T · 20/17 OD Zip
Mains powered, obstacle detection zip motor
Alpha's next generation of obstacle detection zip motors. The WSERD50-T is part of the Alpha Going Green range: a fast, quiet motor that uses less electricity, with a long thermal overload cut-out time so it will not trip after a few cycles.
Reliable obstacle detection on the way down and fabric tensioning on the way up. The S001 wind sensor can also be connected to this motor as an additional safety device, perfect for our Perth coastal installs.
Best for
WSERD50-T Motor & Control Guide
Setup, programming and limit adjustment instructions for the WSERD50-T obstacle detection zip screen motor, including remote pairing and OD function.
Compliance
RoHS compliant. CE certified. Built in receiver, 3 core motor, electronic limit switch and third intermediate limit position.
WSERD50-T Specifications
| Type | 20/17 |
|---|---|
| Rated Torque (Nm) | 20 / 15 / 10 |
| Output Speed (rpm) | 17 / 20 / 28 |
| Obstacle Detection | Yes |
| Nominal Consumption (W) | 170 |
| Input Voltage (V) | 100 to 240V |
| Nominal Current (A) | 0.77 |
| Running Time (mins) | 12 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 750 |
| Net Weight (kg) | 4.5 |
| Sound Intensity (dB) | 32 |
| Diameter | 45mm |

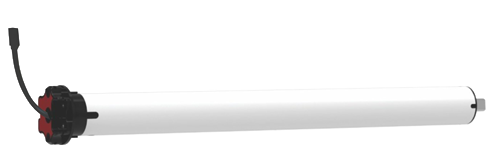

WSERD50-B · 20/12 OD
Rechargeable battery motor, no electrician needed
The super quiet WSERD50-B features a built-in rechargeable lithium-ion battery and is designed for external applications like zip systems and straight drop awnings. No mains wiring required, which makes it perfect for retrofits and locations without a nearby power point.
A range of charging options is available: a head box mounted USB-C port, a side channel USB-C port, or the TYB004-U external USB-C solar panel for true set and forget operation.
WSERD50-B Motor & Control Guide
Setup, charging and programming instructions for the WSERD50-B lithium battery tubular motor, covering both non-OD and obstacle detection versions.
WSERD50-B Specifications
| Type | 20/12 |
|---|---|
| Obstacle Detection | Yes (switchable) |
| Rated Torque (Nm) | 20 |
| Output Speed (rpm) | 8 / 10 / 12 |
| Nominal Consumption (W) | 96 |
| Nominal Voltage (V) | 12 |
| Nominal Current (A) | 8 |
| Running Time (mins) | 12 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 800 |
| Net Weight (kg) | 2.6 |
| Diameter | 45mm |
| Charging | USB-C |
| Included C&D | A2409 |
| Included Bracket | A3438 |
Charging options
The WSERD50-B charges over USB-C with the included ALDC 5V 2 Amp LED charger and a 3 metre cable. Choose the install option that suits your setup:
Browse the solar panel and bracket options to keep the motor charged passively.

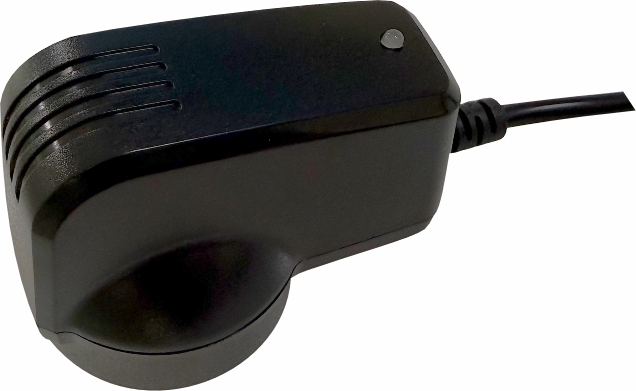

ALDC 5V 2A Charger
5 volt USB-C wall charger with 3 metre cable, designed for the external WSERD50-B motor.

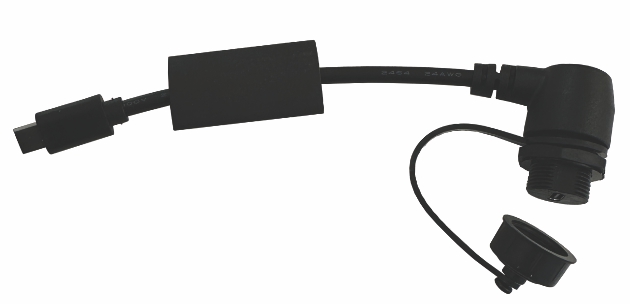

USB-C CP 150mm
External charging port for installation in the head box, with a discreet 150mm tail.

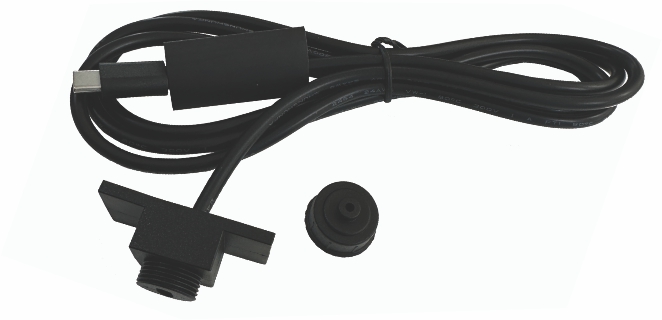

USB-C CP 1.5m
1.5 metre external charging port for side channel installation where the port needs to sit further away.
Compatible Products
Designed for the outdoor blind range
Alpha outdoor blind motors are the ideal motorisation choice for our outdoor blind, awning and straight drop product range.

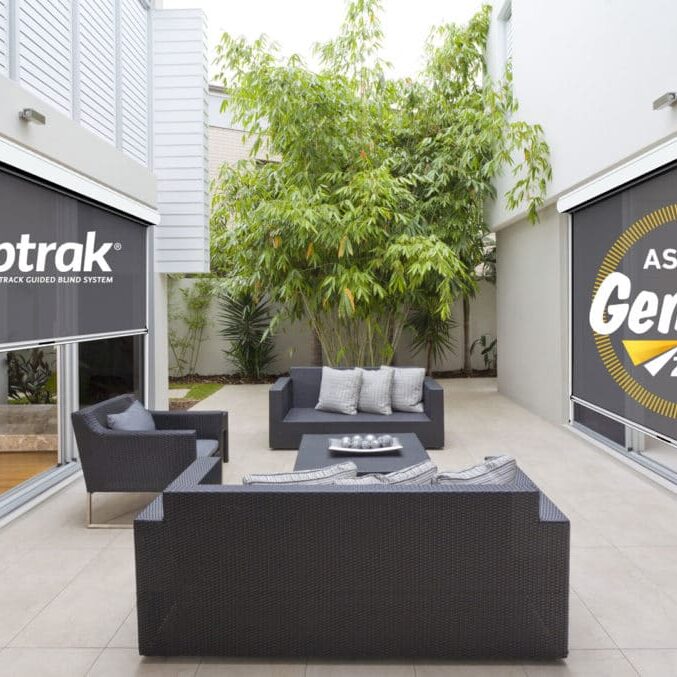

Ziptrak® Outdoor Blinds
Ziptrak® Outdoor Blinds instantly create a brand new space in your home, ready to entertain family and friends at a moments notice.
The Alpha Motors Range
Pick the part of the system you want to explore
Alpha Motors comes in three groups: the controllers that drive the system, the tubular motors that power your blinds, and the accessories that keep them running.
Alpha Motors Controllers
The Alpha control range: the Alpha-Neo app and link box for smart home and voice control with Siri, Google, Alexa and Matter, plus the soft touch Pioneer remote line up from single channel through to 16 channel and 4 channel timer models.
Alpha Outdoor Blind Motors
The Alpha WSERD50-T mains powered and WSERD50-B rechargeable battery motors for outdoor zip and straight drop blinds. Obstacle detection, fabric tensioning, three selectable speeds and a long thermal overload cut out time for years of quiet, reliable operation.
