Alpha Motors Pioneer Remotes
The Pioneer range is the handheld side of Alpha Motors control. Sleek, soft silicone bodies, rolling code security and inter-compatible receivers across every model. Choose a single channel for one blind, a 4 channel for a small grouping, or step up to the LCD 8, 16 or timer versions for full home automation.
Pioneer remotes are designed to live where your blinds live. Soft silicone rubber edges and buttons give the case a bit of give, so the odd accidental drop on the deck or patio is far less of a drama. The LCD models add a clear screen for managing larger systems, with intuitive channel switching and on-screen feedback.
Every Pioneer remote runs on the 433.92 MHz frequency with rolling code security, and pairs directly to any Alpha motor or receiver. Mix and match models across the home to suit each room, then add the Alpha-Neo Link Box if you want to bring the whole system into the app for scheduling and voice

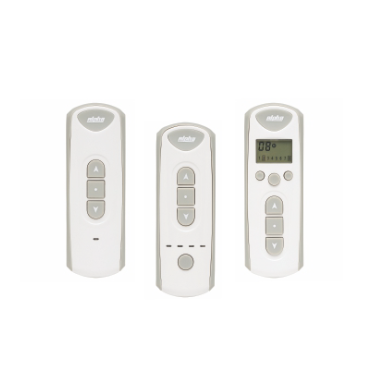

The Line Up
Pick the remote that suits the job
From a single button kitchen blind to a full 16 channel home, every Pioneer remote shares the same look, feel and frequency. The right choice comes down to how many motors you need to address and whether you want scheduling on board.
Pioneer Remote Instructions
Pairing, channel selection and timer programming for the single, 4, 8 and 16 channel remotes.

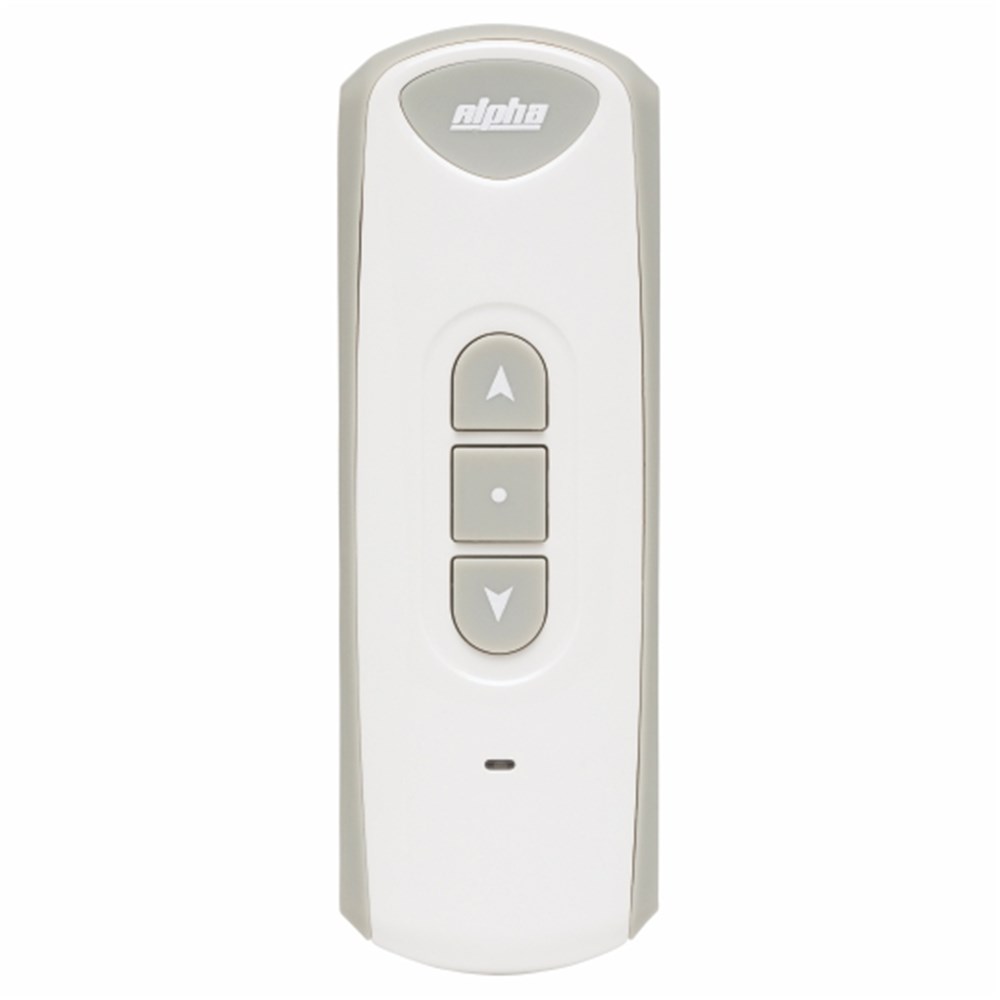

RE101
Single channel. The simplest option: one remote, one blind. Open, stop, close and an extra light command, all on a soft silicone keypad. Wall mountable for a tidy install.
| Channels | 1 |
|---|---|
| Display | No |
| Wall Mount | Yes |
| Battery | CR2032 |

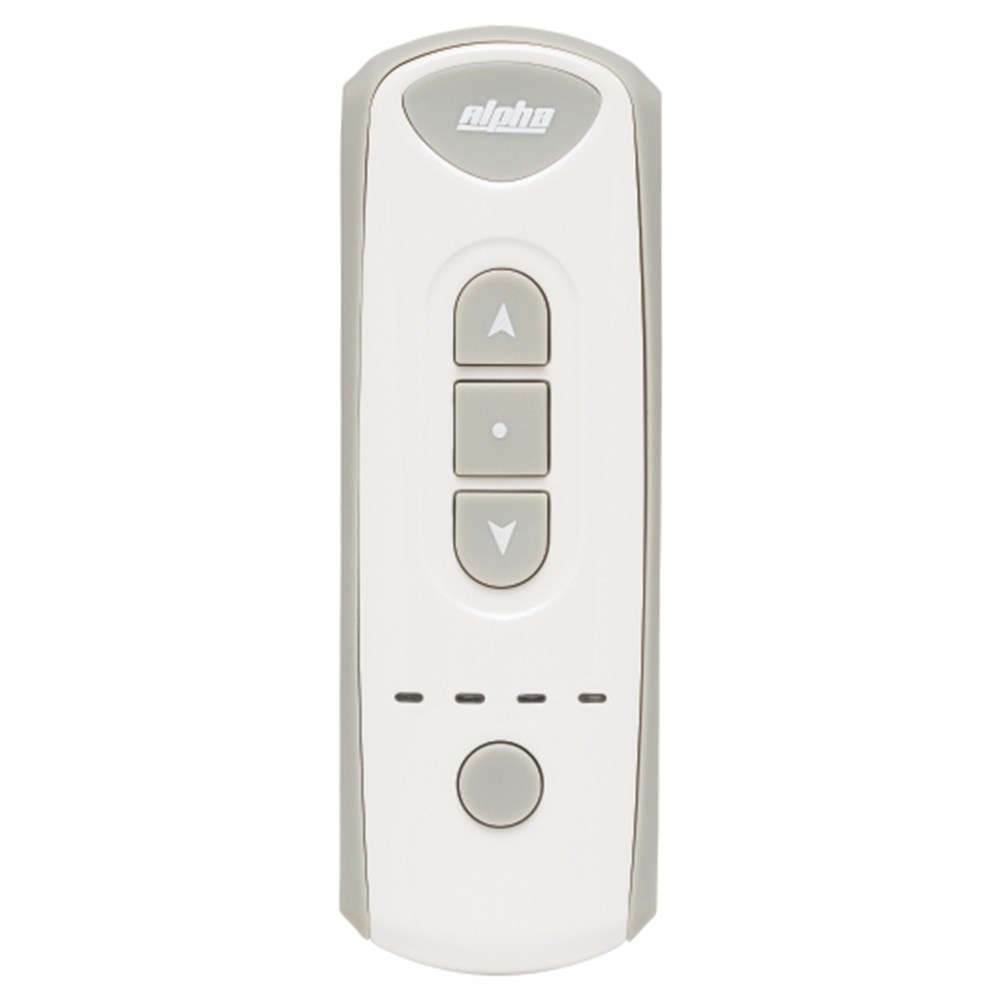

RE102
4 channel. Control four motors individually or as a group, with channel indicator lights along the top. A great fit for a single room with multiple blinds or a small alfresco area.
| Channels | 4 |
|---|---|
| Display | Indicator lights |
| Wall Mount | Yes |
| Battery | CR2032 |

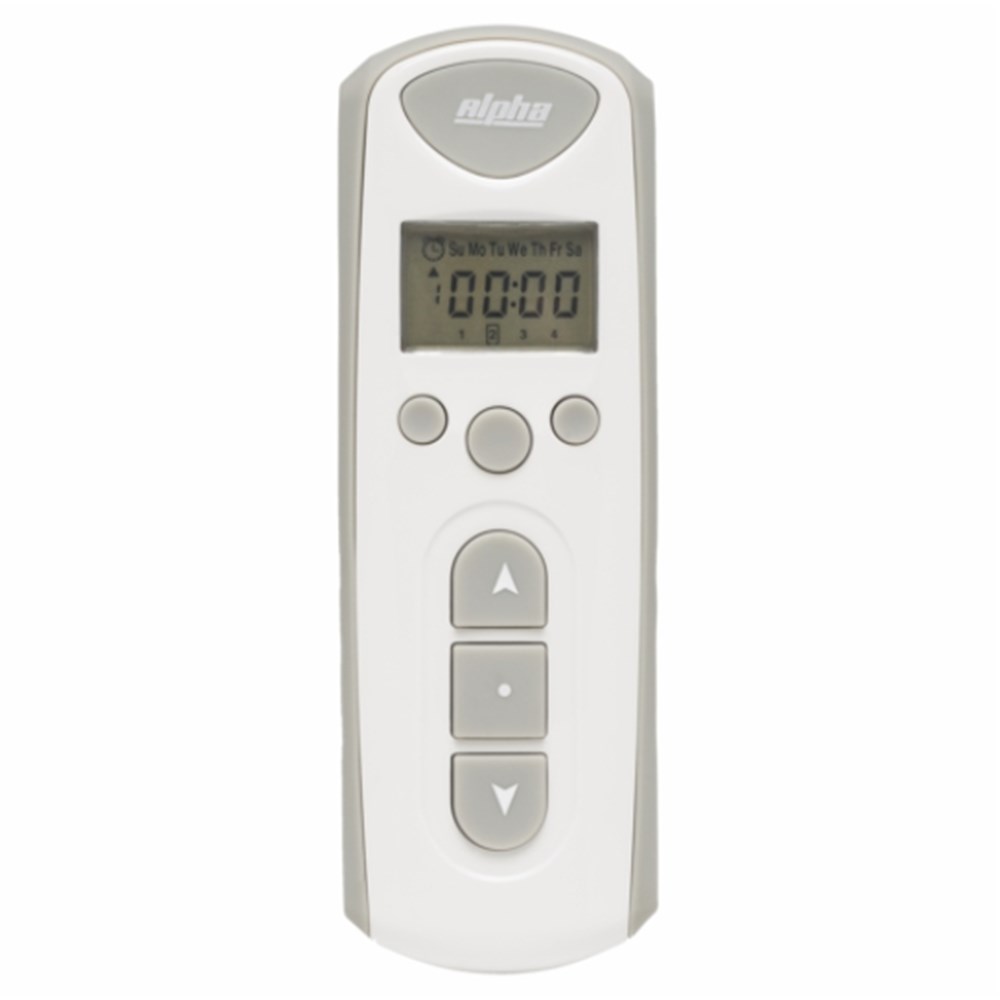

RE103-4C
4 channel with LCD. The same four channel control as the RE102, but with a screen showing the active channel. Easier to manage when you want clear visual feedback at a glance.
| Channels | 4 |
|---|---|
| Display | LCD |
| Wall Mount | Yes |
| Battery | CR2032 |

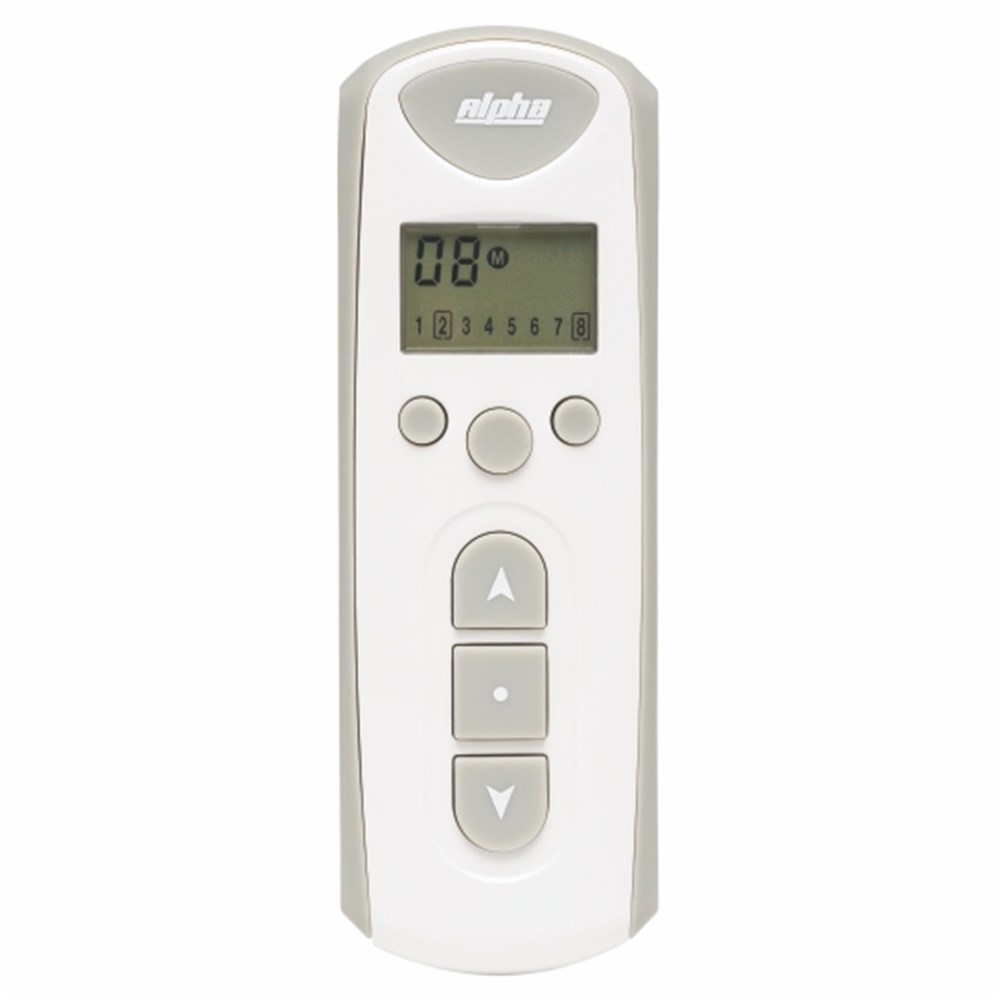

RE103-8C
8 channel with LCD. Eight individual channels plus group control through the K2 button. Ideal for larger homes where one handheld needs to cover multiple rooms.
| Channels | 8 |
|---|---|
| Display | LCD |
| Wall Mount | Yes |
| Battery | CR2032 |

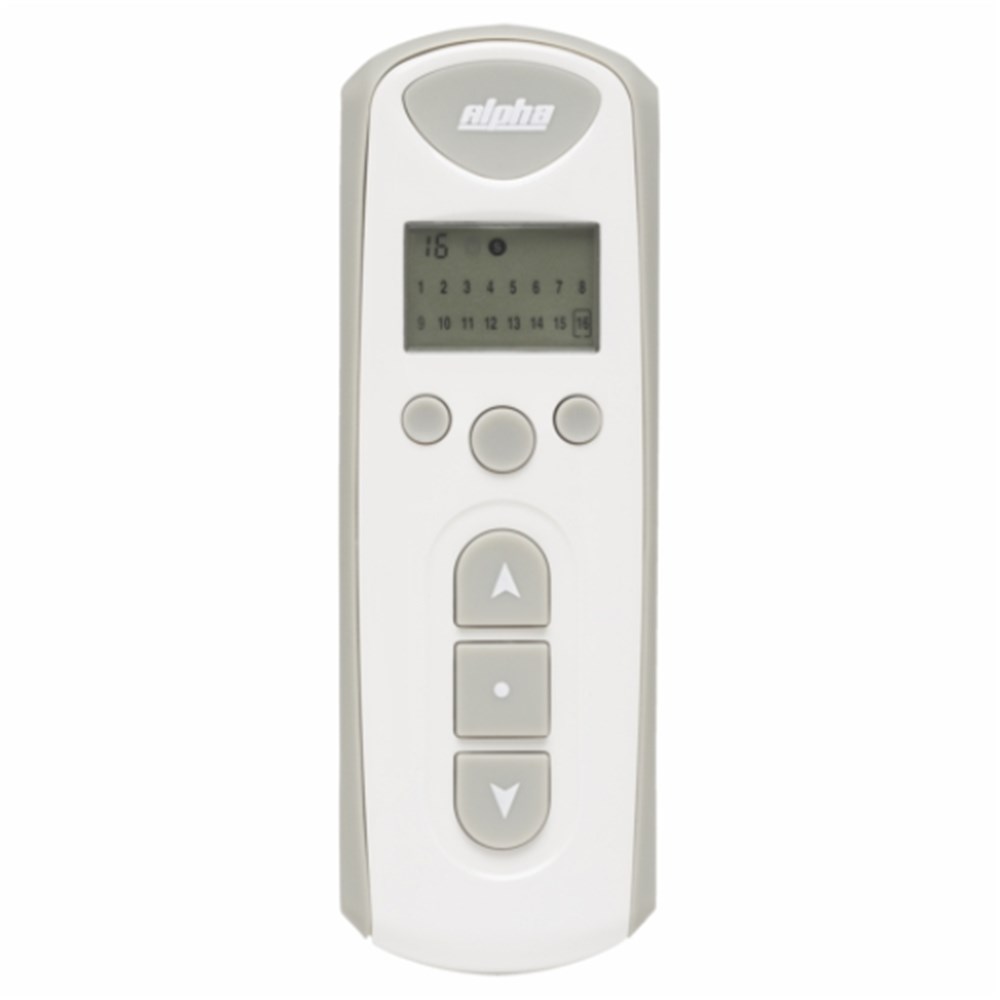

RE103-16C
16 channel with LCD. The flagship handheld. 16 individual channels with custom group assignments, perfect for whole-home installations without needing the Alpha-Neo app.
| Channels | 16 |
|---|---|
| Display | LCD |
| Wall Mount | Yes |
| Battery | CR2032 |
RE103-1T
Single channel timer. All the simplicity of a single channel remote with 8 open and 8 close time points, plus day of week scheduling. A neat option for a single automated blind.
| Channels | 1 with timer |
|---|---|
| Display | LCD |
| Wall Mount | Yes |
| Battery | CR2032 |

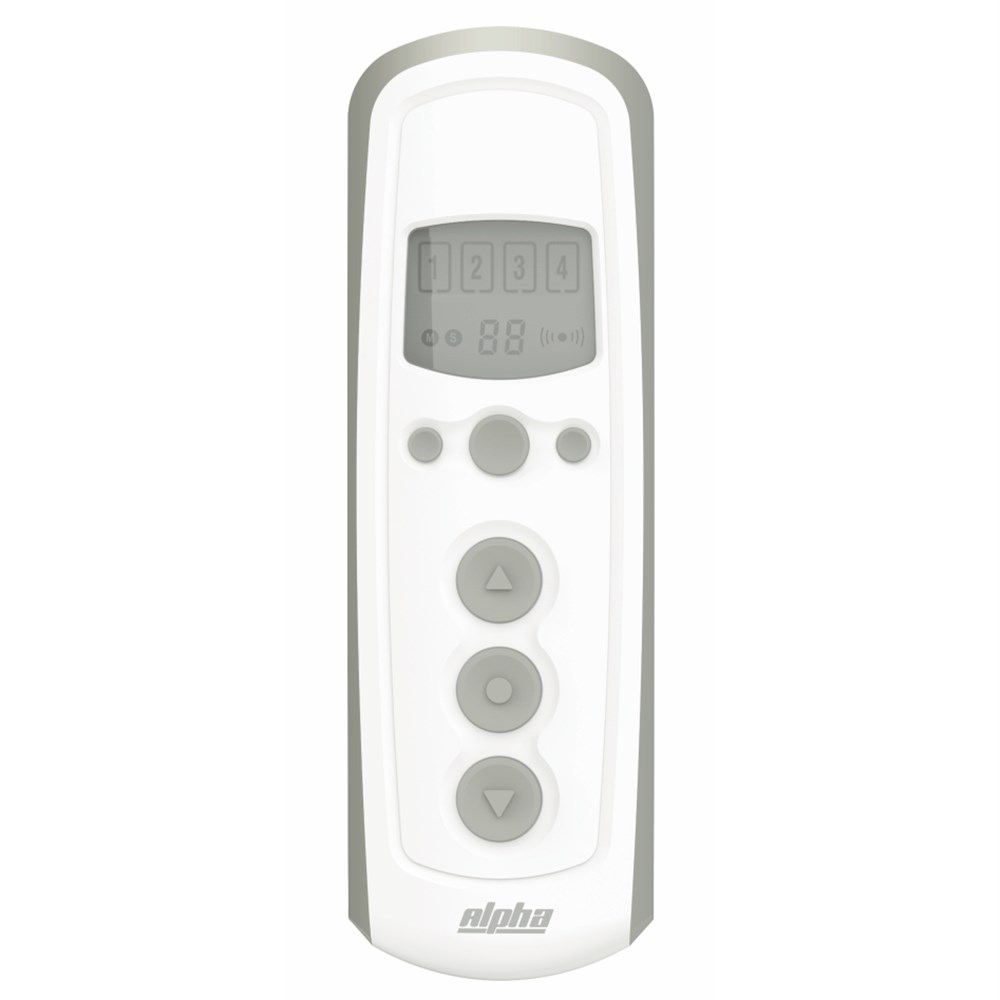

RE103-4T
4 channel timer. Set up to 8 open and 8 close time points across 4 channels, with weekday selection. Hands-free routine control without needing the app or link box.
| Channels | 4 with timer |
|---|---|
| Display | LCD |
| Wall Mount | Yes |
| Battery | CR2032 |
Technical Data
Shared specifications
Every Pioneer remote runs on the same frequency, code type and battery, so receivers and motors stay inter-compatible across the range. The only differences from model to model are channel count, the screen and the timer hardware.
The LCD models carry a slightly wider operating temperature window thanks to their housing, but both LCD and non-LCD remotes are well suited to Australian indoor and covered outdoor conditions.
Common Pioneer Remote Specifications
| Battery | CR2032 (3V) |
|---|---|
| Current Draw | ≤ 12 mA |
| Frequency | 433.92 MHz |
| Code Type | Rolling |
| Protection Index | IP20 |
| Operating Temp (LCD) | -10 °C to +60 °C |
| Operating Temp (Non-LCD) | -20 °C to +60 °C |
How They Work
From single channel to whole house
All Pioneer remotes follow the same logic for pairing and group control. Once you understand the basics, scaling up to more channels or adding a timer is just a few extra button presses.
Works With
Fully compatible with the Alpha system
Every Pioneer remote pairs with every Alpha remote control motor, including the WSERD50-T mains and WSERD50-B battery outdoor blind motors. Receivers and remotes are interchangeable, so you can use a single handheld across a mixed system.
Add the Alpha-Neo Link Box and you can layer app control and voice control on top of your handheld setup, without having to choose between them. The remote stays as the day to day driver, the app takes over for scheduling and remote access.
The Alpha Motors Range
Pick the part of the system you want to explore
Alpha Motors comes in three groups: the controllers that drive the system, the tubular motors that power your blinds, and the accessories that keep them running.
Alpha Motors Controllers
The Alpha control range: the Alpha-Neo app and link box for smart home and voice control with Siri, Google, Alexa and Matter, plus the soft touch Pioneer remote line up from single channel through to 16 channel and 4 channel timer models.
Alpha Outdoor Blind Motors
The Alpha WSERD50-T mains powered and WSERD50-B rechargeable battery motors for outdoor zip and straight drop blinds. Obstacle detection, fabric tensioning, three selectable speeds and a long thermal overload cut out time for years of quiet, reliable operation.
