Success | Roof to Fence Blinds Follow a Sloped Roofline Along a Side Patio

This Success side patio runs the full length of the boundary fence, tiled and already set up as an extension of the alfresco with a dining table, chairs and a run of potted plants. The one thing holding it back was the open side: with the patio roof stepping down toward the fence line, the space caught wind and sun straight off the yard next door, on top of sitting in full view of the neighbouring property.

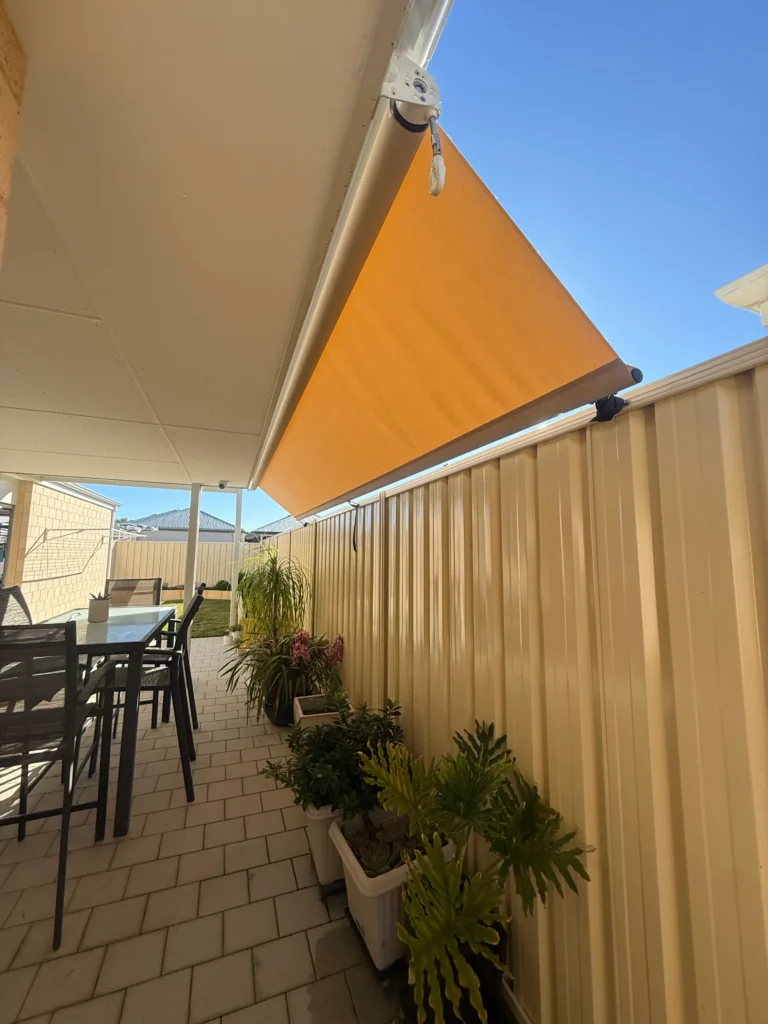

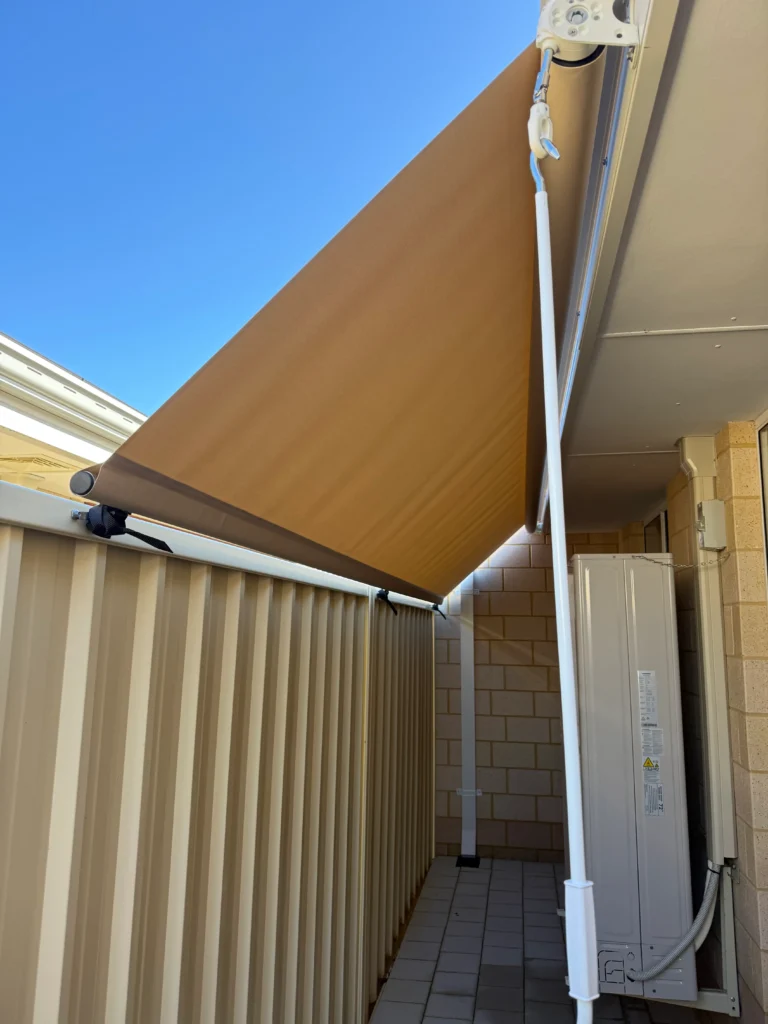

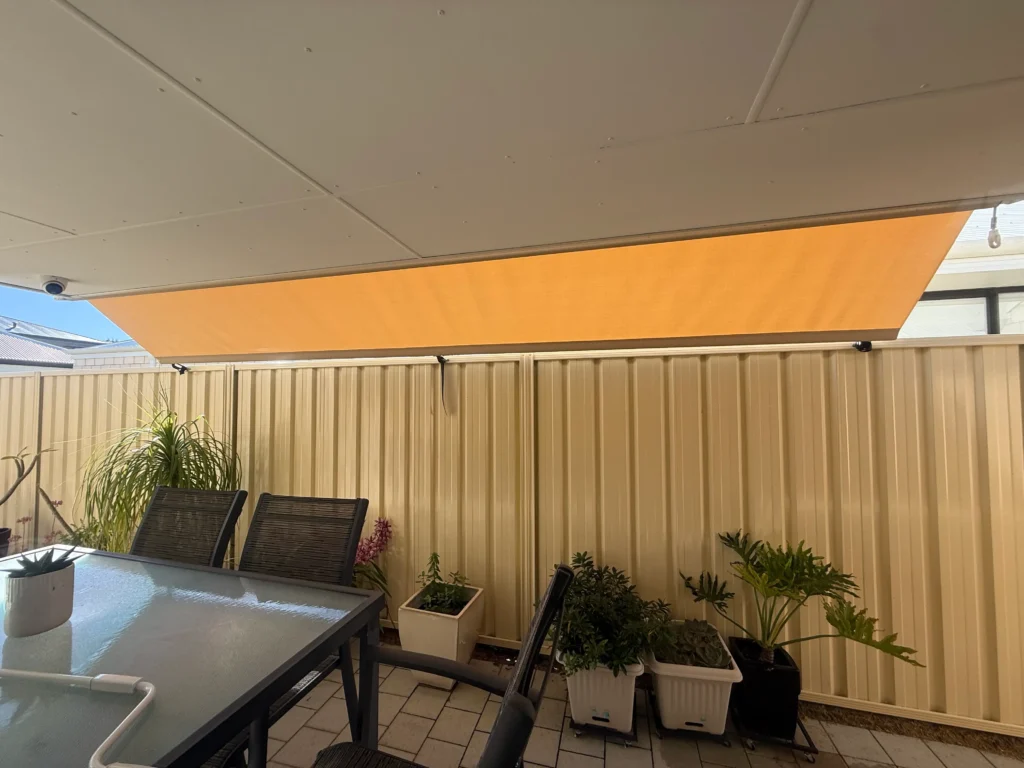

Two Roof to Fence Blinds now run the length of the patio, sized to follow that sloped roofline exactly, a 900mm drop over the first 4.8m and a 1000mm drop over the next 4.5m, so the blinds sit flush under the roof edge the whole way along rather than leaving a gap at one end. Both are made up in Vistaweave® mesh in a Sierra colourway, with a 99% UV block rating, and posts and trims powder coated in Surfmist to match the existing Colorbond fence.

Getting a flush fit here took more than a straight measure. The fence wasn’t quite square, so the second blind had its fabric width trimmed by 50mm to keep both panels tracking evenly along the boundary. Fixing points were mixed too, one post anchored into a steel-framed section (packed out with timber for a solid fix) and the other straight into brick, handled without any compromise to the finished line.

Each blind is crank operated with a swivel gearbox, run manually via a removable crank handle, and finished with three L brackets holding the posts firmly against the fence line.

For a narrow side patio like this, Roof to Fence Blinds can help:

• Follow a sloped or stepped roofline with a different drop at each end, so there’s no gap once the blind is fitted
• Match the powder coat to an existing Colorbond fence for a seamless, built-in look
• Adjust for a fence or boundary that isn’t quite square without affecting how the blind tracks
• Handle mixed fixing points, steel frame, timber and brick, in the one installation
• Turn an exposed side strip into usable, wind-protected space for dining or extra storage

To see more, have a look through the gallery of jobs we’ve installed throughout Western Australia for some inspiration.

If your side patio needs a blind that’s cut to the actual shape of your roofline rather than a standard drop, fill out our Free Measure & Quote form or get in touch with the team.

We’ll see you soon, All About Shade
